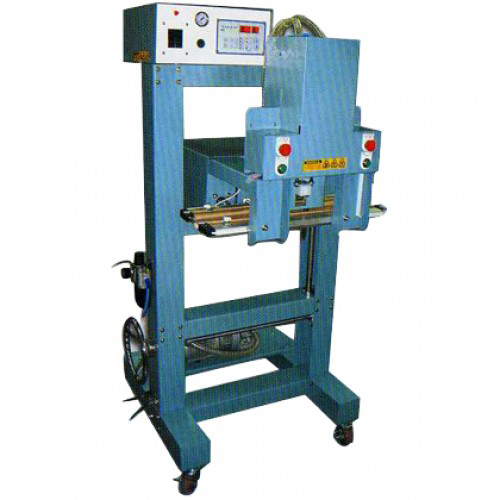

Extra Long Vertical Sealing Impulse Sealer

LM series come with Suitable for large size & heavier weight packing.  Its head parts can be adjusted up & down.

Product ID: LM-6010TInquiry

Description

LM series come with Suitable for large size & heavier weight packing.  Its head parts can be adjusted up & down.  Air control-Press the Foot Switch, sealing will be finished. Operation is so easy.  Customers can use one carter to help the moving & sealing.  Operation requires an outside compressor.  Customer needs to prepare the air compressor 6-7kg/cm2 The largest one can be 2500mm, or more..


Model LM-6010T LM-7510T LM-9010T  LM-10010T
Voltage AC 110V /220V/240V   1 phase
Power (Watt.) Amp: 15AWatt.: 7.3KW Amp: 15AWatt.: 9.2KW Amp: 15AWatt.:11 KW Amp:15AWatt.:12 KW
Max. sealing 10mm*610mm 10mm*760mm 10mm*910mm  10mm*110mm
Sealing Time 0-3.0 sec.
Cooling Time 0-10 sec
Dimension 750*600*1620mm 900*600*1620mm 1050*600*1620mm  1150*600*1620mm
Weight 80KG  100KG 130KG  150KG
