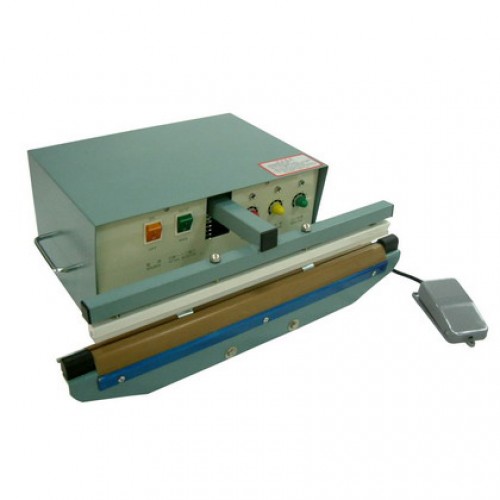

Automatic Impulse Sealer

Impulse Sealer - WU-HSING made Automatic Sealer is designed for the continuous sealing of polyethylene and polypropylene materials.

Product ID: WN-300AInquiry

Description

WU-HSING made Automatic Sealer is designed for the continuous sealing of polyethylene and polypropylene materials. Controlled by a plug-in circuit board and provides the uniform by an electromagnet. Sealing is maintained automatically after 3 Timers are set. Comes with a foot switch for manual operation.Can be selected auto or manual function.Suitable materials: PE, PP, OPP, PVC, POF…


Model

WN-300A WN-450A WN-600A WN-750A WN-900A
Voltage 110V/220V 110V/220V 110V/220V 110V/220V 110V/220V
Power (Watt.) 450W 600W 800W 1000W 1200W
Max. sealing 300 *2.7/5mm 450*2.7/5mm 600*2mm 750*2.7/5mm 900*2.7/5mm
Re-cycle Time 0-7.0 sec 0-7.0 sec 0-7.0 sec 0-7.0 sec 0-7.0 sec.
Sealing Time 0-2.5 sec 0-2.5 sec 0-2.5 sec 0-2.5 sec 0-2.5 sec
Congealing Time 0-7.5 sec 0-7.5 sec 0-7.5 sec 0-7.5 sec 0-7.5 sec.
Max. Temp 220~250 ℃ 220~250 ℃ 220~250 ℃ 220~250 ℃ 220~250 ℃
Dimension 44*36*20cm 53*36*20cm 68*36*20cm 83*36*20cm 98*36*20cm
Weight 17 KGS 19 KGS 22KGS 25KGS 28KGS
